Description
T2RM7F8SDQ ALTX/MERC RK/8DR/EFLOWLINQ/PTC

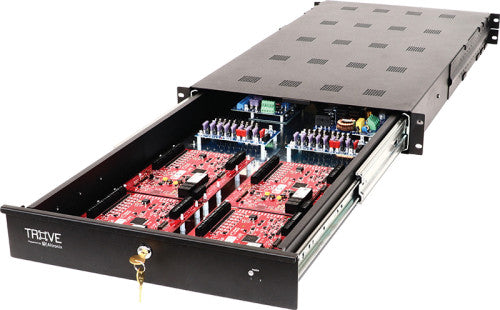

Altronix T2RM7F8SDQ rack kit consists of Trove2M2R enclosure/backplane with one (1) 24VDC @ 10A power supply/charger, one (1) dual input networked eight (8) PTC protected output access control module, one (1) voltage regulator and one (1) dual input eight (8) PTC protected output power distribution module. This kit also accommodates various combinations of Mercury* boards for up to eight (8) doors in a single enclosure. Trove
simplifies board layout and wire management, reduces installation time and labor costs.
*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt eFlow104NB Power Supply/Charger Input Voltage: 120VAC, 60Hz, 4.5A max. Main Fuse: 6.3A / 250V. Output Voltage: 24VDC. Current: 10A continuous. Auxiliary: Class 2 power-limited @ 1A (unswitched). Other: Overvoltage protection. Filtered and regulated. Battery Charging Type: Sealed lead acid or gel type. Fuse Rating: 15A/32V. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge. Indicators LED Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. VR6 Voltage Regulator Input Voltage: 24VDC from eFlow104NB. Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression. Indicators LED Input: 24VDC is present. Output: Powered. PDS8CB Dual Input Power Distribution Module Input Voltage: 12VDC from VR6 and 24VDC from eFlow104NB. Input PTC: 9A. Outputs Voltage: 12VDC and/or 24VDC. Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Outputs Ratings PTCs are rated 2.5A. Indicators (LED) DC Output: Eight (8) individual output LEDs. Green: 12VDC Red: 24VDC. LINQ8ACMCB Networked Access Power Controller Input Two (2) Independent Low Voltage Inputs: - Input 1: 24 VDC from eFlow104NB power supply - Input 2: 12 VDC from VR6 voltage regulator Input PTC: 9A Outputs PTC protected outputs Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2 Individual outputs may be set to OFF position for servicing Output PTCs: 2.5A Programming Features: Eight (8) Programmable Outputs: - Fail-safe, fail-secure or auxiliary outputs - Input controlled or manually controlled through software - High (over) and low (under) voltage and current monitoring by output - Multiple outputs may be programmed to be triggered by a single input - Battery back-up by output Eight (8) Programmable Trigger Inputs: - Normally open (NO), Normally closed (NC) or Open collector sink inputs - Wet Input (5VDC - 24VDC) with 10k resistor - Any combination of the above Other Programmable Trigger Inputs: - Monitor power supply(ies) input for voltage and current limits (high/low) - Input and output current calibration, Programmable timer events - Programmable user levels, Enable or disable alerts by type - Programmable alert reporting delay Indicators (LED) Green AC LED: indicates AC trouble condition Green BAT LED: indicates battery trouble condition Green FACP LED: indicates FACP disconnect is triggered Flashing Blue Heartbeat LED: indicates network connection Individual OUT1 - OUT8 Red LEDs: indicate outputs are triggered Individual Voltage LEDs: indicate 12VDC (Green) or 24VDC (Red) Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 123 BTU/Hr.
