T2RM7CK1DV 8DR MERC WIRED RACK PTC 220V

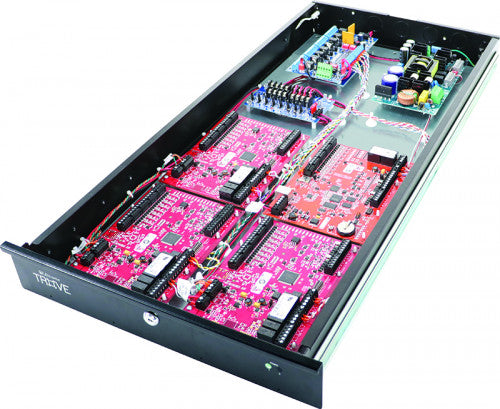

Altronix T2RM7CK1DV is a 8-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T2RM7CK1DV accommodates one (1) Intelligent Dual Reader Controller and three (3) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson
Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric,
Vanderbilt
eFlow104NBV Power Supply/Charger
Input
Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.7A.
Main Fuse: 6.5A / 250V.
Output
Voltage: 24VDC @ 10A.
Auxiliary: 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
Fire Alarm Disconnect
Supervised: Latching or non-latching.
EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
Input: 220VAC is present.
DC Output: 24VDC is present.
Battery: Discharged or not connected.
ACMS8CB Dual Input Access Power Controller
Input
Voltage: 24VDC from eFlow104NBV and 12VDC from VR6.
Input PTC: 9A.
Outputs
Voltage: 24VDC.
Eight (8) 24VDC independently controlled PTC outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Outputs Ratings
PTCs: 2.5A.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
VR6 Voltage Regulator
Input
Voltage: 24VDC from eFlow104NBV.
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators (LED)
Input: 24VDC is present.
Output: Powered.
PDS8CB Power Distribution Module
Input
Voltage: 24VDC from eFlow104NBV and 12VDC from VR6.
Input PTC: 9A.
Outputs
Voltage: 12VDC and/or 24VDC.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2 Individual outputs may be set to OFF position for servicing
Output PTCs: 9A.
Indicators (LED)
DC Output: Eight (8) individual output LEDs.
Green: 12VDC
Red: 24VDC.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.):
123 BTU/Hr.
