Description
T2PXK7F8V TROVE2PX2/8-DR/10A/220 IN/FUSE

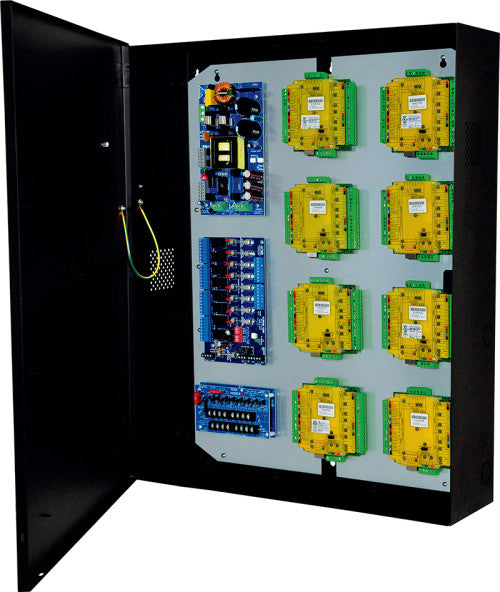

Altronix T2PXK7F8V kit consists of Trove2 enclosure, TPX2 Paxton/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) fuse protected eight (8) output access power controller and one (1) fuse protected eight (8) dual output power distribution module and one (1) voltage regulator.
This kit also accommodates Paxton Net2 Plus boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. eFlow104NBV Power Supply/Charger Input Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.7A max. Input Fuse: 5A / 250V. Outputs Voltage: 24VDC @ 10A.. Auxiliary: 1A (unswitched). Protection: Overvoltage protection. Filtered and regulated. Battery Charging Capacity: 12VDC/12AH (2 within enclosure); 40 AH / 65 AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units. Prevents deep battery discharge. Indicators LED AC Input: 220VAC is present. DC Output: Powered. Battery: Discharged or not connected. ACM8 Access Power Controller Input Voltage: 12VDC from eFlow102NBV. Main Fuse: 10A / 32V. Outputs Voltage: 12VDC. Eight (8) 24VDC independently controlled fused outputs: a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Output Fuses: 3.5A / 32VDC. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. VR6 Voltage Regulator Input/Output Voltage Range: 24VDC @ 3.5A = Output: 12VDC @ 6A. Output Voltage: 12VDC regulated output. Output rating: 6A max. Other: Surge suppression. Indicators LED Input: Indicates input voltage is present. Output: Indicates normal operating condition. PDS8 Dual Output Power Distribution Module Input Voltage Range: 5VDC to 24VDC, up to 10A each, 20A total input. Main Fuse Rating: 10A. Outputs Fuse protected outputs rated @ 3A per output, non power-limited. Total output 20A max. Do not exceed the individual power supply ratings. Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Outputs Ratings 4.8VDC - 24VDC. Indicators (LED) DC Output: Individual voltage LEDs indicate 12VDC (Green) or 24VDC (Red/Green). Features: Multiple units may be daisy-chained to accommodate larger systems. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 113 BTU/Hr.
