Description
T2PXK7F8DV TROVE2PX2/8-DR/10A/220 IN/PTC

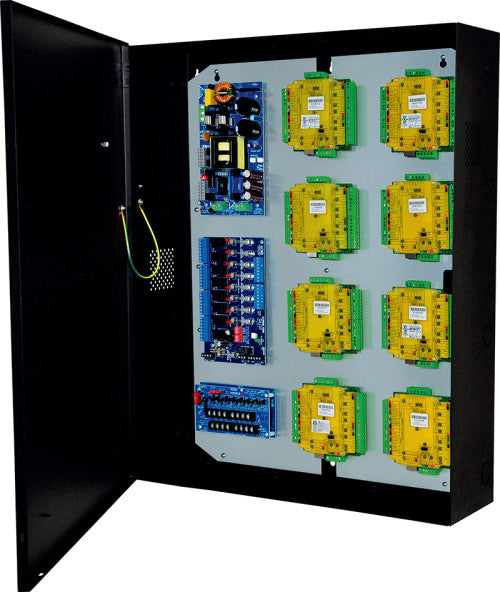

Altronix T2PXK7F8DV kit consists of Trove2 enclosure, TPX2 Paxton/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) PTC protected eight (8) output access power controller and one (1) PTC protected eight (8) dual output power distribution module and one (1) voltage regulator. This kit also accommodates Paxton Net2 Plus boards for up to eight (8) doors or Paxton10 for up to six (6) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
eFlow104NBV Power Supply/Charger
Input
Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.7A.
Input Fuse: 6.3A / 250V.
Output
Voltage: 24VDC @ 10A.
Auxiliary: 1A (unswitched).
Protection: Overvoltage protection. Filtered and regulated.
Battery Charging
Capacity: 12VDC/12AH (2 within enclosure); 40 AH / 65 AH (requires separate enclosure)
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Fire Alarm Disconnect
Supervised: Latching or non-latching.
EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units. Prevents deep battery discharge.
Indicators LED
AC Input: 120VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
ACM8CB Access Power Controller
Input
Voltage: 12VDC from eFlow104NBV.
Main Fuse: 10A / 250V.
Outputs
Voltage: 12VDC.
Eight (8) 24VDC independently controlled PTC outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output PTCs: 2.5A.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
VR6 Voltage Regulator
Input
Voltage: 24VDC from eFlow104NBV.
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.
Output: Powered.
PDS8CB Dual Input Power Distribution Module
Input
Voltage: 12VDC from VR6 and 24VDC from eFlow104NBV.
Input PTC: 9A.
Outputs
Voltage: 12VDC and/or 24VDC.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
PTCs are rated 2.5V.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
145 BTU/Hr.
