Description
T2PHK7524D TROVE2PH2/24DR OP/PTC/ULX/115V

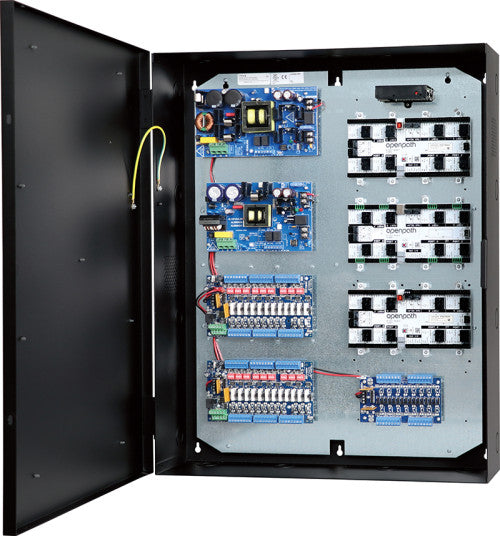

Altronix T2PHK7524D kit consists of Trove2 enclosure, TCV2 Openpath/Altronix backplane with one (1) 24VDC @ 10A and one (1) 12VDC @ 10A power supply/charger, two (2)
twelve (12) PTC protected output dual input access control modules and one (1) sixteen (16)
output dual input PTC power distribution module.
This kit also accommodates up to one (1) Openpath Core, two (2) Elevator Board, three (3) 4-Port or 8-Port modules for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. AL1024ULXB2 Power Supply/Charger - 1 Input Voltage: 115VAC, 60Hz, 4.2A. Fusing: 5A / 250V. Output Voltage: 24VDC. Current: 10A @ 24VDC continuous max. Other: Overvoltage protection. Filtered and regulated. AL1012ULXB Power Supply/Charger - 2 Input Voltage: 115VAC, 60Hz, 2.6A. Fusing: 5A / 250V. Output Voltage: 12VDC. Current: 10A @ 12VDC continuous max. Other: Overvoltage protection. Filtered and regulated. Both Power Supplies Battery Charging Capacity 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Indicators LED Input: 115VAC is present. DC Output: Powered. Battery: Discharged or not connected. Two (2) ACMS12CB Dual Input Access Power Controllers Input Voltage: 24VDC from AL1024ULXB2 and 12VDC from AL1012ULXB. Input PTC: 9A. Outputs Voltage: 12VDC and/or 24VDC. Twelve (12) independently controlled PTC outputs: a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Outputs Ratings PTCs: 2.5A. Indicators (LED's) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. PDS16CB Dual Input Power Distribution Module Input Voltage: 12VDC from AL1012ULXB and 24VDC from AL1024ULXB2. Input PTCs: 9A. Outputs Voltage: 12VDC and/or 24VDC. Any of the sixteen (16) power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Outputs Ratings PTCs: 2.5A. Indicators (LED) DC Output: Sixteen (16) individual output LEDs. Green: 12VDC Red: 24VDC. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 290 BTU/Hr.
