Description
T2PHK7524 TROVE2PH2/24DR OP/FUS/ULX/115V

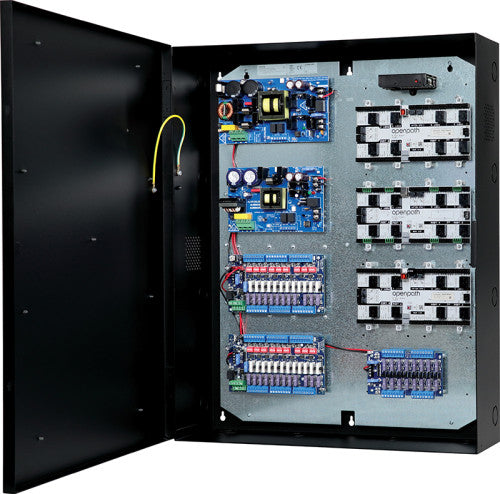

Altronix T2PHK7524 kit consists of Trove2 enclosure, TCV2 Openpath/Altronix backplane with one (1) 24VDC @ 10A and one (1) 12VDC @ 10A power supply/charger, two (2) twelve (12) fuse protected output dual input access control modules and one (1) sixteen (16) fused output dual input power distribution module. This kit also accommodates up to one (1) Openpath
Core, two (2) Elevator Board, three (3) 4-Port or 8-Port modules for up to sixteen (16) doors in
a single enclosure. Trove simplifies board layout and wire management, reduces installation
time and labor costs.
AL1024ULXB2 Power Supply/Charger - 1
Input
Voltage: 115VAC, 60Hz, 4.2A.
Main Fuse: 5A / 250V.
Output
Voltage: 24VDC.
Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
AL1012ULXB Power Supply/Charger - 2
Input
Voltage: 115VAC, 60Hz, 2.6A max.
Main Fuse: 5A / 250V.
Output
Voltage: 12VDC.
Current: 10A @ 12VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Both Power Supplies
Battery Charging
Capacity 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure)
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Indicators LED
Input: 115VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
Two (2) ACMS12 Dual Input Access Power Controllers
Input
Voltage: 24VDC from AL1024ULXB2 and 12VDC from AL1012ULXB.
Input Fuse: 15A / 32V.
Outputs
Voltage: 12VDC and/or 24VDC.
Twelve (12) independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs.
Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Outputs Ratings
Fuses: 3A/32V.
Indicators (LED's)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
PDS16 Dual Input Power Distribution Module
Input
Voltage: 12VDC from AL1012ULXB and 24VDC from AL1024ULXB2.
Input Fuse: 15A / 32V.
Outputs
Voltage: 12VDC and/or 24VDC.
Any of the sixteen (16) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
Fuses: 3A/32V.
Indicators (LED)
DC Output: Sixteen (16) individual output LEDs.
Green: 12VDC
Red: 24VDC.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
290 BTU/Hr.
