Description
T2MK3F8ADQ TROVE2M2/8DR MANGD/6A/PTC

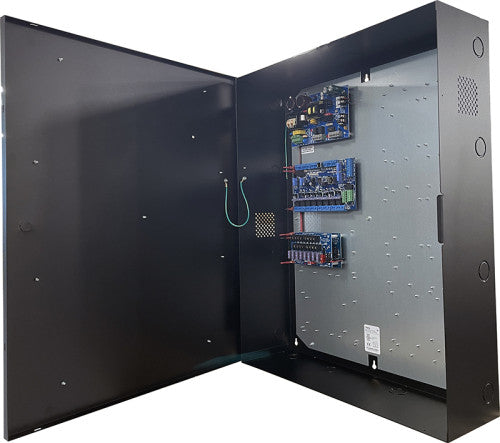

Altronix T2MK3F8ADQ kit consists of Trove2 enclosure and TM2 Mercury/Altronix backplane with 24VDC @ 6A power supply/charger, 12VDC voltage regulator, eight (8) PTC protected output dual input/output network access control module and eight (8) PTC protected dual input/output power distribution module. This kit also accommodates various combinations of Mercury/Lenel* boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt eFlow6NB Power Supply/Charger Input Voltage: 120VAC, 60Hz. 3.5A. Input Fuse: 5A / 250V. Output Voltage: 24VDC. Current: 6A continuous. Auxiliary: 1A (unswitched). Other: Overvoltage protection. Filtered and regulated. Battery Charging Capacity: 7AH / 12VDC (Up to 2 within enclosure); 40 AH / 65 AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. (depending on the power supply). Prevents deep battery discharge. Indicators LED Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. LINQ8ACMCB Networked Access Power Controller Input Two (2) Independent Low Voltage Inputs: - Input 1: 24 VDC from eFlow6NB power supply - Input 2: 12 VDC from VR6 voltage regulator Input PTC: 9A Outputs PTC protected outputs Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2 Individual outputs may be set to OFF position for servicing Output PTCs: 2.5A Programming Features: Eight (8) Programmable Outputs: - Fail-safe, fail-secure or auxiliary outputs - Input controlled or manually controlled through software - High (over) and low (under) voltage and current monitoring by output - Multiple outputs may be programmed to be triggered by a single input - Battery back-up by output Eight (8) Programmable Trigger Inputs: - Normally open (NO), Normally closed (NC) or Open collector sink inputs - Wet Input (5VDC - 24VDC) with 10k resistor - Any combination of the above Other Programmable Trigger Inputs: - Monitor power supply(ies) input for voltage and current limits (high/low) - Input and output current calibration, Programmable timer events - Programmable user levels, Enable or disable alerts by type - Programmable alert reporting delay Indicators (LED) Green AC LED: indicates AC trouble condition Green BAT LED: indicates battery trouble condition Green FACP LED: indicates FACP disconnect is triggered Flashing Blue Heartbeat LED: indicates network connection Individual OUT1 - OUT8 Red LEDs: indicate outputs are triggered Individual Voltage LEDs: indicate 12VDC (Green) or 24VDC (Red) VR6 Voltage Regulator Input Voltage: 24VDC from eFlow6NB. Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression. Indicators LED Input: 24VDC is present. Output: Powered. PDS8CB Dual Input Power Distribution Module Input Voltage: 12VDC from VR6 and 24VDC from eFlow6NB. Input PTC Rating: 9A. Outputs Voltage: 12VDC and/or 24VDC. Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Outputs Ratings PTCs: 2.5A. Indicators (LED) DC Output: Eight (8) individual output LEDs. Green: 12VDC Red: 24VDC. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 145 BTU/Hr.
