Description
T2DK7F16 ALT/DIN RAIL/16DR/FUSE/115

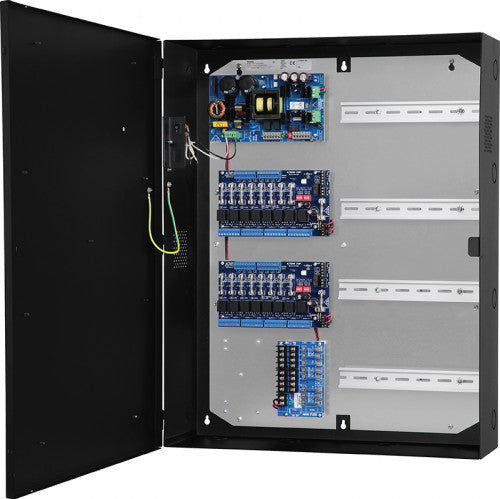

Altronix T2DK7F16 kit consists of Trove2 enclosure and TDR2 Altronix/DIN Rail backplane with 24VDC @ 10A power supply/charger, sixteen (16) fuse protected access control module and eight (8) fuse protected power distribution module. This kit also accommodates any DIN Rail mountable products for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
eFlow104NTB Power Supply/Charger
Input
Voltage: 120VAC, 60Hz, 4.5A max.
Input Fuse: 6.3A/250V
Outputs
Voltage: 24VDC
Current: 10A continuous
Auxiliary: 1A (unswitched)
Other: Overvoltage protection. Filtered and regulated
Battery Charging
Capacity: 12VDC/12AH (2 within enclosure), 40AH/65AH (requires separate enclosure)
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Supervision
AC Failure: Form “C” contacts
Battery: Form “C” contacts
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge
Indicators LED
Input: 120VAC is present
DC Output: Powered
Battery: Discharged or not connected
PD8UL Power Distribution Module
Input
Voltage: 24VDC from eFlow104NTB
Outputs
Voltage: 24VDC
Fuses: 3.5A/250V.
Indicators LED
Green LED: DC Output
Two (2) ACM8 Access Power Controllers
Input
Voltage: 24VDC from eFlow104NTB
Main Fuse: 10A / 250V.
Outputs
Voltage: 24VDC.
Eight (8) 24VDC independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched)
c) Any combination of the above
Output Fuses: 3.5A / 250V.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized)
Green LED: FACP disconnect is triggered
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 145 BTU/Hr.
