Altronix T2CVK33F10 TROVE2CV2, 10-DR, 12A, PTC

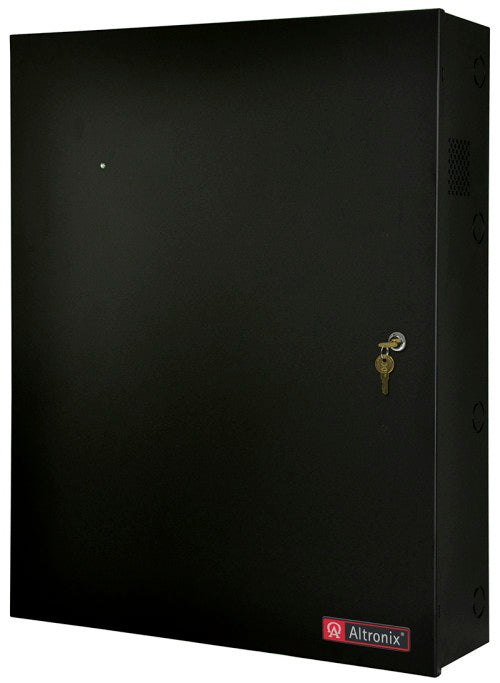

T2CVK33F10 TROVE2CV2, 10-DR, 12A, PTC Altronix T2CVK33F10 kit consists of Trove2 enclosure, TCV2 CDVI/Altronix backplane with two (2) 12 or 24VDC @ 6A power supply/chargers, and two (2) PTC protected five (5) output Power Distribution Modules with Fire Alarm Interface. This kit also accommodate various combinations of CDVI Atrium A22K/A22NB/ADH10 boards for up to ten (10) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. Two (2) eFlow6NB Power Supply/Chargers Input Voltage: 120VAC, 60Hz, 3.5A max. Fusing: 5A / 250V. Output Voltage: 12VDC or 24VDC selectable. Current: 6A continuous max. Auxiliary: Power-limited @ 1A (unswitched). Other: Overvoltage protection. Filtered and regulated. Battery Charging Type: Sealed lead acid or gel type. Fuse Rating: 10A @ 32VDC. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators LED Input: 120VAC is present. DC Output: Powered. Two (2) MOM5 Power Distribution Modules with Fire Alarm Interface Input Voltage: 12VDC or 24VDC from power supply. Output Five (5) individual Class 2 Rated PTC protected power-limited outputs (auto-resettable). Voltage: 12VDC or 24VDC. Current: 2.5A continuous supply current. Current limit is 2A per output. Other: Short circuit and thermal overload protection. Filtered and regulated. Fire Alarm Interface Fire Alarm Panel or Access Control System trigger inputs N.O. or N.C. supervised trigger input and polarity reversal trigger input. Supervision Power Failure: Form “C” contact rated 1A 28VDC/115VAC. Trigger: Form “C” contact rated 1A 28VDC/115VAC. Indicators (LED) Input: Power is present. Input Trigger: On. Outputs (Individual LEDs): Output fail. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 74 BTU/Hr. 24VDC: 148 BTU/Hr. 12VDC and 24VDC: 111 BTU/Hr.
