T2AGK7F12S ALTX/AMAG 12DR/115V/FUSE

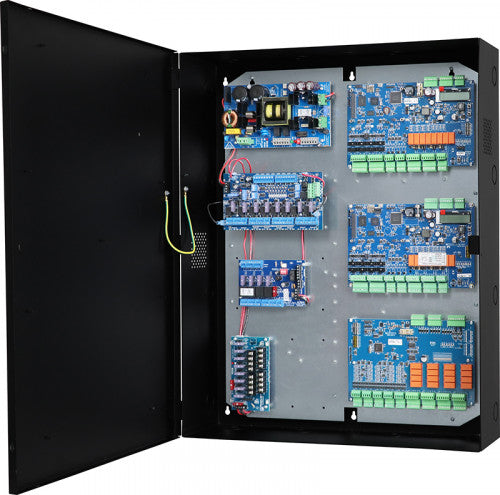

Altronix T2AGK7F12S kit consists of Trove2 enclosure, TAM2 AMAG/Altronix backplane with
one (1) 24VDC @ 10A power supply/charger, one (1) 8-output dual input fused access power
controller, one (1) 4-output fused access power controller, one (1) voltage regulator and one
(1) dual input fused power distribution module.
This kit also accommodate up to three (3) AMAG M4000 modules for up to twelve (12) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. eFlow104NB Power Supply/Charger Input Voltage: 120VAC, 60Hz, 4.5A max. Main Fuse: 6.3A / 250V. Output Voltage: 24VDC. Current: 10A continuous. Auxiliary: Class 2 power-limited @ 1A (unswitched). Protection: Overvoltage protection. Filtered and regulated. Battery Charging Capacity: 12AH/12VDC (4 within enclosure); 40AH/65AH (requires separate enclosure). Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge. Indicators LED Input: 120VAC is present. DC Output: Powered. PDS8 Dual Input Power Distribution Module Input Voltage: 24VDC from eFlow104NB and 12VDC from VR6. Input Fuse: 10A / 32V. Outputs Voltage: 12 and/or 24VDC. Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Outputs Ratings Fuses: 3A/32V. Indicators LED DC Output: Eight (8) individual output LEDs. Green: 12VDC Red: 24VDC. VR6 Voltage Regulator Input Voltage: 24VDC from eFlow104NB. Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression. Indicators LED Input: 24VDC is present. Output: Powered. ACMS8 Dual Input Access Power Controller Input Voltage: 24VDC from eFlow104NB and 12VDC from VR6. Input Fuse: 15A / 32V. Outputs Voltage: 24VDC. Eight (8) 24VDC independently controlled fused outputs: a) Fail-Safe and/or Fail-Secure power outputs Form “C” Relays rated 28VAC or VDC @ 2.5A. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Outputs Ratings Fuses: 3A/32V. Indicators (LED's) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. ACM4 Access Power Controller Input Voltage: 24VDC from eFlow104NB. Input Fuse: 10A /32V. Outputs Voltage: 24VDC. Four (4) independently controlled fused outputs: a) Fail-Safe and/or Fail-Secure power outputs Form “C” Relays rated 28VAC or VDC @ 2.5A. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Output Fuses: 3A / 32V. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 131 BTU/Hr.
