Description
T2AGK78SD ALTX/AMAG 8DR/ULX/115V/PTC

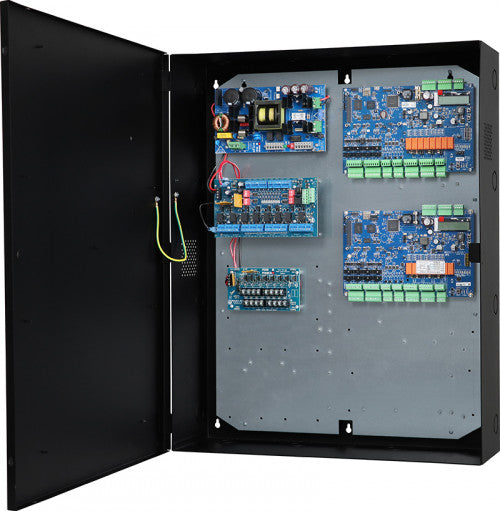

Altronix T2AGK78SD kit consists of Trove2 enclosure, TAM2 AMAG/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) dual input PTC access power controller, one (1) voltage regulator and one (1) dual input PTC power distribution module. This kit also accommodate up to two (2) AMAG M4000 modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
AL1024ULXB2 Power Supply/Charger
Input
Voltage: 115VAC, 60Hz, 4.2A max.
Main Fuse: 5A / 250V.
Output
Voltage: 24VDC.
Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Capacity: 12AH /12VDC (4 within enclosure), 40 AH / 65 AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Indicators LED
Input: 115VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
ACMS8CB Dual Input Access Power Controller
Input
Voltage: 24VDC from AL1024ULXB2 and 12VDC from VR6.
Input PTC: 9A.
Outputs
Voltage: 12 or 24VDC individually selectable.
Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
a) Fail-Safe and/or Fail-Secure power outputs.
b) Form “C” Relays rated 28VAC or VDC @ 2.5A Rated.
c) Auxiliary power outputs (unswitched).
d) Any combination of the above.
Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
PTCs: 2.5A.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Blue LED: FACP disconnect is triggered.
Individual voltage LEDs:
Green: 12VDC
Red: 24VDC
VR6 Voltage Regulator
Input
Voltage: 24VDC from AL1024ULXB2.
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.
Output: Powered.
PDS8CB Dual Input Power Distribution Module
Input
Voltage: 24VDC from AL1024ULXB2 and 12VDC from VR6.
Input PTC: 9A.
Outputs
Voltage: 12VDC and/or 24VDC.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
PTCs are rated 2.5A.
Indicators (LED)
DC Output: Eight (8) individual output LEDs.
Green: 12VDC
Red: 24VDC.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.):
145 BTU/Hr.
