Description

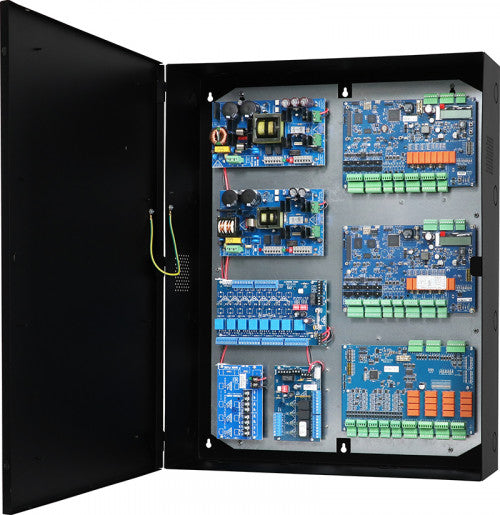

T2AGK75F12D TROVE2AG2, 12-DR, 10A, PTC
Altronix T2AGK75F12D kit consists of Trove2 enclosure, TAM2 AMAG/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) 12VDC @ 10A power supply/charger, one (1) 8-output PTC access power controller, one (1) 4-output PTC access power controller, and one (1) PTC power distribution module.
This kit also accommodate up to three (3) AMAG M4000 modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation
time and labor costs.
eFlow104NB Power Supply/Charger - 1
Input
Voltage: 120VAC, 60Hz, 4.5A max.
Main Fuse: 6.5A / 250V.
Output
Voltage: 24VDC.
Current: 10A continuous.
eFlow102NB Power Supply/Charger - 2
Input
Voltage: 120VAC, 60Hz, 3.5A max.
Main Fuse: 5A / 250V.
Output
Voltage: 12VDC.
Current: 10A continuous.
Both Power Supplies
Outputs
Auxiliary: Class 2 power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Capacity: 12AH/12VDC (2 within enclosure); 40AH/65AH (requires separate enclosure)
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Fire Alarm Disconnect
Supervised: Latching or non-latching.
EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown
Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units or 71-73% for 12V units. Prevents deep battery discharge.
Indicators (LED)
AC Input: 120VAC is present.
DC Output: Powered.
ACM8CB Access Power Controller
Input
Voltage: 24VDC from eFlow104NB.
Main Fuse: 10A / 250V.
Outputs
Voltage: 24VDC.
Eight (8) independently controlled PTC outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output PTCs: 2.5A.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
ACM4CB Access Power Controller
Input
Voltage: 24VDC from eFlow104NB.
Input PTC 9A.
Outputs
Voltage: 24VDC.
Four (4) independently controlled PTC outputs:
a) Fail-Safe and/or Fail-Secure power outputs; Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Outputs Ratings
PTCs: 2.5A.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
PD4ULCB Power Distribution Module
Input
Voltage: 12VDC from eFlow102NB.
Outputs
Voltage: 12VDC.
Four (4) PTC protected outputs. 2.5A per output max.
Output PTCs: 2.5A.
Indicators (LED)
Green LED: DC Output.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
177 BTU/Hr.
