Description

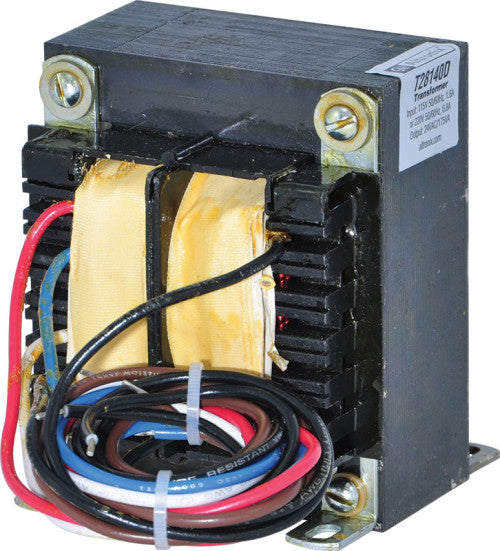

T28140D 110/220 VAC TRANSFORMER
Altronix T28140D dual voltage open frame transformer provides power for electronic power supplies and equipment including security, access control, and surveillance devices.
Input
115VAC 50/60 Hz @ 1.6 or 220VAC 50/60 Hz, 0.8A.
Output
28VAC/175VA (6.25A) supply current.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 90 BTU/Hr.
System AC input VA requirement:
115VAC: 184VA.
220VAC: 176VA.
