Description
T2428100CP220 24/28vac 100va 220v xfmr in en

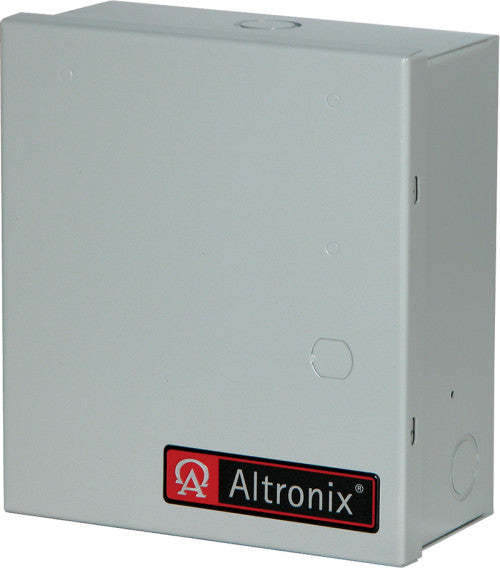

Altronix T2428100CP220 AC power supply provides power for electronic power supplies and equipment including security, access control, and surveillance devices.
Input
220VAC 50/60Hz, 0.5A.
In-line fuse rated @ 3.5A/250V.
Fused input protection.
Output
24VAC @ 4A or 28VAC @ 3.5A supply current.
Features
Green grounding lead.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 50 BTU/Hr.
System AC input VA requirement: 110VA.
