Description
T1SAK34D TROVE1SA1/12/24VDC@6A/PTC/ULX

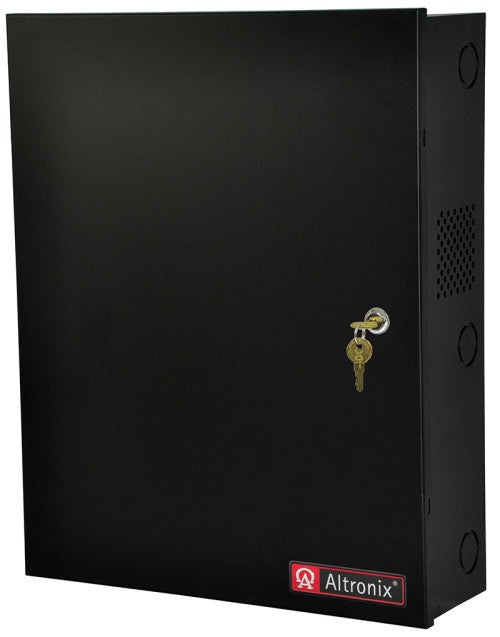

Altronix T1SAK34D kit consists of Trove1 enclosure, TSA1 Salto/Altronix backplane with one (1) 12VDC or 24VDC @ 6A power supply/charger, one (1) PTC access power controller, one dual input PTC power distribution module and one (1) voltage regulator. This kit also accommodates up to two (2) Salto CU42E0, CU4200 or CU4EB8 modules for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces
installation time and labor costs.
AL600ULXB Power Supply/Charger
Input
Voltage: 115VAC, 60Hz, 3.5A max.
Fusing: 5A / 250V.
Outputs
Voltage: 12VDC or 24VDC selectable.
Current: 6A @ 12VDC or 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Capacity: 12VDC/7AH (2 within enclosure); 40AH/65AH (requires separate enclosure)
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Indicators LED
Input: 115VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
PDS8CB Dual Input Power Distribution Module
Input
Voltage: 12VDC from VR6 and 24VDC from AL600ULXB.
Input PTC: 9A.
Outputs
Voltage: 12VDC and/or 24VDC.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
PTCs are rated 2.5A.
VR6 Voltage Regulator
Input
Voltage: 24VDC from AL600ULXB.
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.
Output: Powered.
ACM4CB Access Power Controller
Input
Voltage: 24VDC from AL600ULXB.
Input Fuse: 10A/32V.
Outputs
Voltage: 24VDC.
Four (4) 24VDC independently controlled PTC outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output PTCs: 2.5A.
Indicators LED
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 40 BTU/Hr.
24VDC: 77 BTU/Hr.
