Description

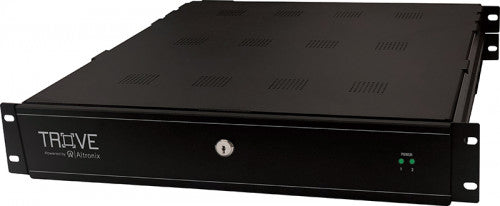

T1RSH1F4D ALTX/SWH RACK/4DR/PTC/115V
Altronix T1RSH1F4D kit consists of Trove1R enclosure and TSH1R Altronix & Software House backplane with 12VDC or 24VDC (factory set at 24VDC) @ 4A power supply/charger and four (4) output PTC access control module. This kit also accommodates various combinations of Software House boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
eFlow4RLB Power Supply/Charger
Input
Voltage: 120VAC, 60Hz, 3.5A.
Fusing: 5A / 250V.
Output
Voltage: 24VDC
Current: 4A continuous
Auxiliary: 1A (unswitched)
Other: Overvoltage protection. Filtered and regulated
Battery Charging
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately)
Supervision
AC Failure: Form “C” contacts
Battery: Form “C” contacts
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge
Indicators LED
Input: 120VAC is present
DC Output: Powered
Battery: Discharged or not connected
ACM4CB Access Power Controller
Input
24VDC from eFlow4RLB
Input PTC: 9A.
Outputs
Voltage: 24VDC.
Four (4) independently controlled PTC outputs:
a) Four (4) Fail-Safe and/or Fail-Secure power outputs
Form “C” Relays rated 28VAC or VDC @ 2.5A
b) Auxiliary power outputs (unswitched)
c) Any combination of the above
Outputs Ratings
PTCs: 2.5V.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
85% +/- 5%.
BTU/Hr. (approx.):
53 BTU/Hr.
