Description
T1RM3F4DV ALX/MERC RACK/4-DR SY/PTC/220V

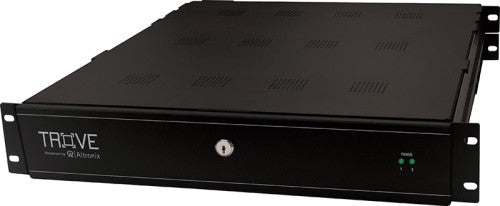

Altronix T1RM3F4DV kit consists of Trove1R enclosure and TM1R Altronix & Mercury backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger, 12VDC voltage regulator, eight (8) output PTC dual output power distribution module and four (4) PTC protected output access control module. This kit also accommodates various combinations of Mercury boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
*Compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt eFlow6NBV Power Supply/Charger Input Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.5A. Fusing: 5A / 250V. Output Voltage: Factory set at 24VDC. Current: 6A continuous. Maximum Supply Current for Main and Aux. Outputs on eFlow6NBV Power Supply board, PDS8CB Power Distribution Module’s and ACM4CB Access Power Controller’s outputs is 5.6A. Auxiliary: Class 2 power-limited @ 1A (unswitched). Other: Overvoltage protection. Filtered and regulated. Battery Charging Type: Sealed lead acid or gel type. Fuse Rating: 10A @ 32VDC. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge. Indicators LED Input: 220VAC is present. DC Output: Powered. Battery: Discharged or not connected. PDS8CB Power Distribution Module Input Voltage: 24VDC from eFlow6NBV and 12VDC from VR6. Input PTC: 9A. Outputs Voltage: 12 or 24VDC individually selectable. Output PTCs: 2.5A. Indicators (LED) DC Output: Eight (8) individual output LEDs. Green: 12VDC Red: 24VDC. VR6 Voltage Regulator Input Voltage: 24VDC from eFlow6NBV. Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression. Indicators (LED) Input: 24VDC is present. Output: Powered. ACM4CB Access Power Controller Input Voltage: 24VDC from eFlow6NBV. Fusing: 10A / 250V. Output Voltage: 24VDC. Four (4) independently controlled 2.5A outputs: a) Four (4) Fail-Safe and/or Fail-Secure power outputs. Four (4) auxiliary power outputs (unswitched). Output PTCs: 2.5A. Indicators (LED's) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 115 BTU/Hr.
