Description
T1RM3CK1 T1RM3F4 PRE-WIRED

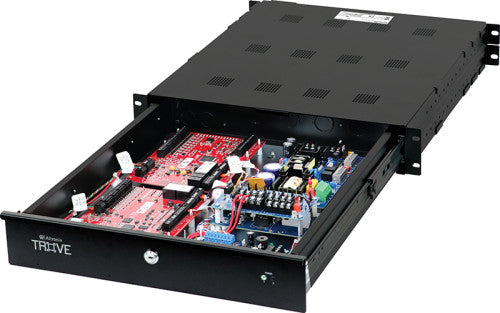

Altronix T1RM3CK1 is a 4-door access and power integration kit which includes Altronix
power and sub-assemblies along with factory installed wire management and wire
assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit
provides ample power and dual voltage outputs to support Mercury platform controllers
and locking devices. The T1RM3CK1 accommodates one (1) Intelligent Dual Reader
Controller and one (1) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt eFlow6NB Power Supply/Charger Input Voltage: 120VAC, 60Hz, 3.5A. Fusing: 5A / 250V. Output Voltage: 24VDC. Current: 6A continuous. Auxiliary: 1A (unswitched). Other: Overvoltage protection. Filtered and regulated. Battery Charging Type: Sealed lead acid or gel type. Fuse Rating: 10A @ 32V. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators LED Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. PDS8 Power Distribution Module Input Voltage: 24VDC from eFlow6NB and 12VDC from VR6. Fusing: 10A / 32V. Outputs Voltage: 12 and/or 24VDC. Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2 Individual outputs may be set to OFF position for servicing Fuses Rating: 3A / 32V. Indicators (LED) DC Output: Eight (8) individual output LEDs. Green: 12VDC Red: 24VDC. VR6 Voltage Regulator Input Voltage: 24VDC from eFlow6NB. Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression. Indicators (LED) Input: 24VDC is present. Output: Powered. ACM4 Access Power Controller Input Voltage: 24VDC from eFlow6NB. Fusing: 10A / 32V. Output Voltage: 24VDC. Four (4) independently controlled fused outputs: a) Fail-Safe and/or Fail-Secure power outputs Form “C” Relays rated 28VAC or VDC @ 2.5A b) Auxiliary power outputs (unswitched). c) Any combination of the above. Fuses Rating: 3A / 32V. Indicators (LED's) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 87 BTU/Hr.
