Description

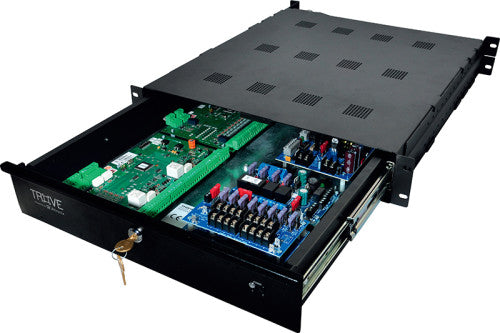

T1RHW3F4 ALTX/HONEYWELL RACK/4-DOOR SYS
Altronix T1RHW3F4 Trove™ Rack kit is pre-assembled and consists Trove1R enclosure
and THW1R Altronix/Honeywell backplane with 12VDC or 24VDC (factory set at 24VDC)
@ 6A power supply/charger, 12VDC voltage regulator, eight (8) output fused dual output
power distribution module and four (4) output fused access control module. This kit also
accommodates various combinations of Honeywell boards for up to four (4) doors in a
single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
eFlow6NB Power Supply/Charger
Input
Voltage: 120VAC, 60Hz, 3.5A max.
Fusing: 5A / 250V.
Outputs
Voltage: Factory set at 24VDC.
Current: 6A continuous.
Maximum Supply Current for Main and Aux. Outputs on eFlow6NB Power Supply board, PDS8 Power Distribution Module’s and ACM4 Access Power Controller’s outputs is 5.6A.
Auxiliary: Class 2 power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Fire Alarm Disconnect
Supervised: Latching or non latching.
EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
Input: 120VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
PDS8 Power Distribution Module
Input
Voltage: 24VDC from eFlow6NB and 12VDC from VR6.
Fusing: 10A / 250V.
Outputs
Voltage: 12 or 24VDC individually selectable.
Fuses Rating: 3A / 32VDC.
Indicators (LED)
DC Output: Eight (8) individual output LEDs.
VR6 Voltage Regulator
Input
Voltage: 24VDC from eFlow6NB.
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators (LED)
Input: 24VDC is present.
Output: Powered.
ACM4 Access Power Controller
Input
Voltage: 24VDC from eFlow6NB.
Fusing: 10A / 250V.
Outputs
Voltage: 24VDC.
Four (4) independently controlled 2.5A outputs:
a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
b) Four (4) dry form “C” 5A rated relay outputs.
c) Any combination of the above.
Four (4) auxiliary power outputs (unswitched).
Fuses Rating: 3A / 32VDC.
Indicators (LED's)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
115 BTU/Hr.
