T1RAL33F16V ALTRONIX RACK/16DR SYS/220V

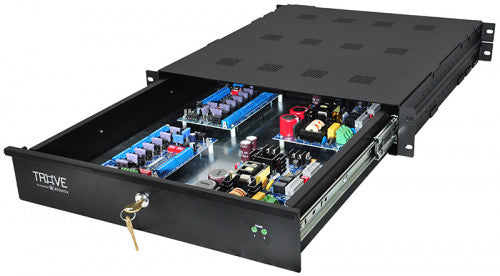

Altronix T1RAL33F16V Trove™ Rack kit is pre-assembled and consists Trove1R enclosure and TAL1R Altronix backplane with two (2) 12VDC or 24VDC @ 6A power supply/chargers and two (2) eight (8) output fused dual output access control modules. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Two (2) eFlow6RLBV Power Supply/Chargers
Input
Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.5A
Fusing: 5A / 250V
Output
Voltage: Factory set: one (1) eFlow6RLBV at 12VDC and one (1) at 24VDC
Current: 6A continuous
Maximum Supply Current for Main and Aux. Outputs on eFlow6RLBV Power Supply boards and ACMS8 Access Power Controllers outputs is 5.3A @ 12VDC and 5.6A @ 24VDC
Auxiliary: Class 2 power-limited @ 1A (unswitched)
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Fire Alarm Disconnect
Supervised: Latching or non latching.
EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
Input: 220VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
Two (2) ACMS8 Access Power Controllers
Input
Voltage: 24VDC from one Flow6RLBV and 12VDC from another.
Fusing: 15A / 32V.
Outputs
Voltage: 12 or 24VDC individually selectable.
Eight (8) selectable 12VDC or 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
a) Fail-Safe and/or Fail-Secure power outputs.
b) Form “C” Relays. 28VAC or VDC @ 2.5A Rated.
c) Auxiliary power outputs (unswitched).
d) Any combination of the above.
Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Output Fuses: 3A / 32V.
Indicators (LED's)
Red LEDs Outputs are triggered (relays energized)
Blue LED: FACP disconnect is triggered.
Individual voltage LEDs
Green: 12VDC
Red/Green: 24VDC
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
115 BTU/Hr.
