Description

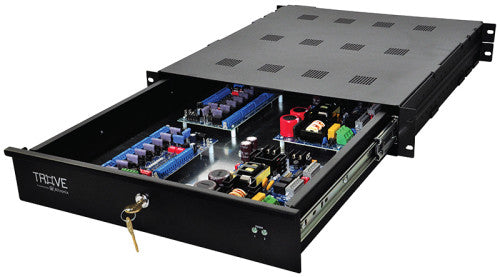

T1RAL33F16 ALTRONIX RACK / 16-DOOR SYS
Altronix T1RAL33F16 rack kit is pre-assembled and consists of Trove1AL1R enclosure/backplane with factory installed Altronix power supply/ charger(s) and sub-assemblies.
Two (2) eFlow6NB Power Supply/Chargers
Input
Voltage: 120VAC, 60Hz, 7A max.
Fusing: 5A / 250V.
Output
Voltage: Factory set: one (1) eFlow6NB at 12VDC and one (1) at 24VDC.
Current: 6A continuous.
Maximum Supply Current for Main and Aux. Outputs on eFlow6NB Power Supply boards and ACMS8 Access Power Controller's outputs is 5.3A @ 12VDC and 5.6A @ 24VDC.
Auxiliary: Class 2 power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Fire Alarm Disconnect
Supervised: Latching or non latching.
EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
Input: 120VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
Two (2) ACMS8 Access Power Controllers
Input
Voltage: 24VDC from one eFlow6NB and 12VDC from another.
Fusing: 15A / 32V.
Output
Voltage: 12 or 24VDC individually selectable.
Eight (8) selectable 12VDC or 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
a) Fail-Safe and/or Fail-Secure power outputs.
b) Form “C” Relays. 28VAC or VDC @ 2.5A Rated.
c) Auxiliary power outputs (unswitched).
d) Any combination of the above.
Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Output Fuses: 3A / 32VDC.
Indicators (LED's)
Red LED: Outputs are triggered (relays energized).
Blue LED: FACP disconnect is triggered.
Individual voltage LEDs
Green: 12VDC
Red/Green: 24VDC
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
156 BTU/Hr.
