Description
T1RAG3F8 ALTX/AMAG RACK/8-DOOR SYS

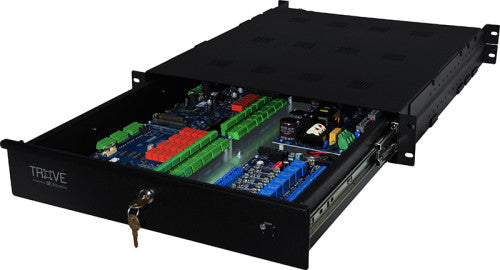

Altronix T1RAG3F8 Trove™ Rack kit is pre-assembled and consists of Trove1R enclosure and TAG1R Altronix/ AMAG M4000 backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger, 12VDC voltage regulator and eight (8) output fused dual output access control module. This kit also accommodates various combinations of AMAG Symmetry M4000 boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
eFlow6NB Power Supply/Charger
Input
Voltage: 120VAC, 60Hz, 3.5A max.
Main Fuse: 5A / 250V.
Output
Voltage: Factory set at 24VDC.
Current: 6A continuous.
Auxiliary: Class 2 power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Fire Alarm Disconnect
Supervised: Latching or non latching.
EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge.
Indicators LED
Input: 120VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
VR6 Voltage Regulator
Input
Voltage: 24VDC from eFlow6NB.
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators (LED)
Input: 24VDC is present.
Output: Powered.
ACMS8 Access Power Controller
Input
Voltage: 24VDC from eFlow6NB and 12VDC from VR6.
Fusing: 15A / 32V.
Output
Voltage: 12 or 24VDC individually selectable.
Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
a) Fail-Safe and/or Fail-Secure power outputs.
b) Form “C” Relays. 28VAC or VDC @ 2.5A Rated.
c) Auxiliary power outputs (unswitched).
d) Any combination of the above.
Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Output Fuses: 3A / 32VDC.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Blue LED: FACP disconnect is triggered.
Individual voltage LEDs
Green: 12VDC
Red: 24VDC
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
115 BTU/Hr.
