Description
T1PHK14SD ALTX/OPENPATH/4DR/ULX PTC

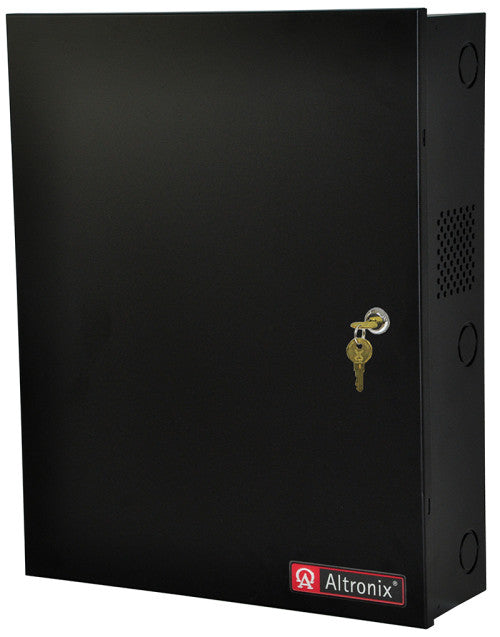

Altronix T1PHK14SD kit consists of Trove1 enclosure, TC1 Openpath/Altronix backplane with one (1) 12VDC 4A or 24VDC @ 3A power supply/charger, one (1) PTC access power controller, one dual input power distribution module and one (1) voltage regulator. This kit also accommodates up to one (1) Openpath Core, Elevator Board, 4-Port or 8-Port modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
AL400ULXB2 Power Supply/Charger
Input
Voltage: 115VAC, 60Hz, 3.5A max.
Input Fuse: 5A / 250V.
Outputs
Voltage: 12VDC or 24VDC selectable.
Current: 4A @ 12VDC or 3A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Capacity: 12VDC/7AH (2 within enclosure); 40 AH / 65 AH (requires separate enclosure)
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Indicators LED
Input: 115VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
PDS8CB Dual Input Power Distribution Module
Input
Voltage: 12VDC from VR6 and 24VDC from AL400ULXB2.
Input PTC: 10A.
Outputs
Voltage: 12VDC and/or 24VDC.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
Fuses 3A/32V.
Indicators (LED)
DC Output: Eight (8) individual output LEDs.
Green: 12VDC
Red: 24VDC.
VR6 Voltage Regulator
Input
Voltage: 24VDC from AL400ULXB2.
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.
Output: Powered.
ACM4CB Access Power Controller
Input
24VDC from AL400ULXB2.
Input Fuse: 5A/250V.
Outputs
Voltage: 24VDC.
Four (4) independently controlled 2.5A outputs:
a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
Four (4) auxiliary power outputs (unswitched).
Outputs Ratings
PTCs: 2.5A.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 40 BTU/Hr.
24VDC: 77 BTU/Hr.
