Description

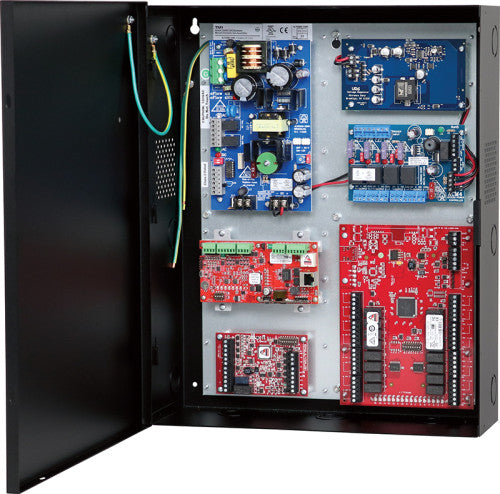

T1MK1F4V TROVE1M1/12/24V@4A/FUSE/220 IN
Altronix T1MK1F4V kit consists of Trove1 enclosure and TM1 Altronix & Mercury backplane
with 12VDC or 24VDC (factory set at 24VDC) @ 4A power supply/charger, 12VDC voltage
regulator and four (4) fuse protected output access control module. This kit also accommodates various combinations of Mercury* boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt eFlow4NBV Power Supply/Charger Input Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.1A. Fusing: 5A / 250V. Output Voltage: 24VDC. Current: 4A continuous. Other: Overvoltage protection. Filtered and regulated. Battery Charging Capacity: 7AH / 12VDC (Up to 2 within enclosure); 40 AH / 65 AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators LED Input: 220VAC is present. DC Output: Powered. Battery: Discharged or not connected. VR6 Voltage Regulator Input Voltage: 24VDC from eFlow4NBV. Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression. Indicators (LED) Input: 24VDC is present. Output: Powered. ACM4 Access Power Controller Input Voltage: 24VDC from eFlow4NBV. Input Fuse: 10A / 32V. Output Voltage: 24VDC. Four (4) independently controlled 2.5A outputs: a) Four (4) Fail-Safe and/or Fail-Secure power outputs form “C” Relays rated 28VAC or VDC @ 2.5A. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Outputs Ratings Fuses: 3A / 32V. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 90 BTU/Hr.
