Description
T1MK1F4SAQ ALTX/MER/4A/4DR/FUSE/115

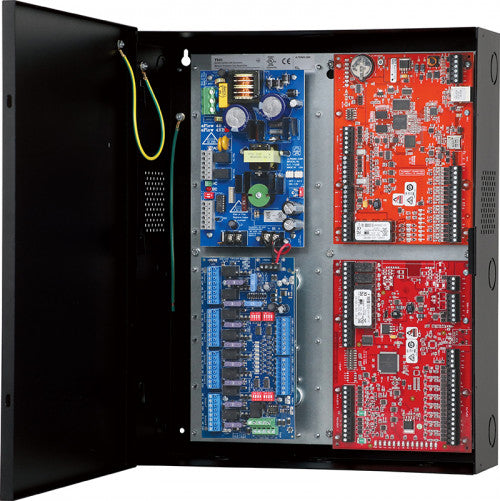

Altronix T1MK1F4SAQ kit consists of Trove1 enclosure and TM1 Altronix & Mercury backplane with 12VDC or 24VDC (factory set at 24VDC) @ 4A power supply/charger, 12VDC voltage regulator, eight (8) fuse protected output managed access control module. This kit also accommodates various combinations of Mercury* boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt
eFlow4NB Power Supply/Charger
Input
Voltage: 120VAC, 60Hz, 3.5A.
Fusing: 5A / 250V.
Output
Voltage: 24VDC.
Current: 4A continuous.
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Capacity: 7AH / 12VDC (Up to 2 within enclosure); 40 AH / 65 AH (requires separate enclosure)
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
Input: 120VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
VR6 Voltage Regulator
Input
Voltage: 24VDC from eFlow4NB.
Output
Voltage: 12VDC.
Current: 4A continuous.
Other: Surge suppression.
Indicators (LED)
Input: 24VDC is present.
Output: Powered.
LINQ8ACM Networked Access Power Controller
Input
Voltage: 24VDC from eFlow4NB and 12VDC from VR6
Input Fuses: 15A/32V
Outputs
Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2
Individual outputs may be set to OFF position for servicing
Output Fuses:
3A/32V
Programming Features:
Eight (8) Programmable Outputs:
- Fail-safe, fail-secure or auxiliary outputs
- Input controlled or manually controlled through software
- High (over) and low (under) voltage and current monitoring by output
- Multiple outputs may be programmed to be triggered by a single input
- Battery back-up by output
Eight (8) Programmable Trigger Inputs:
- Normally open (NO), Normally closed (NC) or Open collector sink inputs
- Wet Input (5VDC - 24VDC) with 10k resistor
- Any combination of the above
Other Programmable Trigger Inputs:
- Monitor power supply(ies) input for voltage and currect limits (high/low)
- Input and output current calibration, Programmable timer events
- Programmable user levels, Enable or disable alerts by type
- Programmable alert reporting delay
Indicators (LED)
Green AC LED: indicates AC trouble condition
Green BAT LED: indicates battery trouble condition
Green FACP LED: indicates FACP disconnect is triggered
Flashing Blue Heartbeat LED: indicates network connection
Individual OUT1 - OUT8 Red LEDs: indicate outputs are triggered
Individual Voltage LEDs: indicate 12VDC (Green) or 24VDC (Red)
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
90 BTU/Hr.
