Description
T1M1CK1DV T1MK1F4SDV/MAG/PTC/220VAC

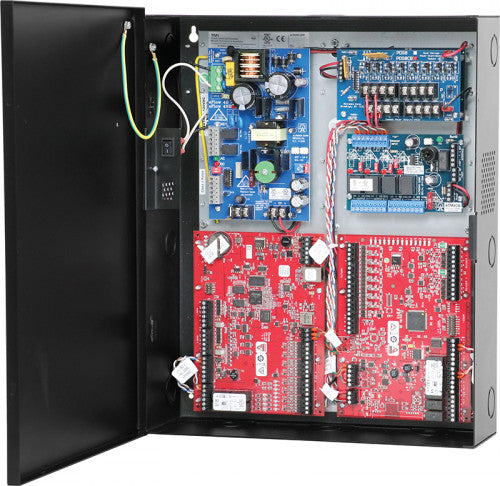

Altronix T1M1CK1DV is a 4-door access and power integration kit which includes Altronix
power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T1M1CK1DV accommodates one (1) Intelligent Dual Reader Controller and one (1) Dual Reader Interface Module. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt
eFlow4NBV Power Supply/Charger
Input
Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.1A.
Fusing: 5A / 250V.
Output
Voltage: 24VDC.
Current: 4A continuous.
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Capacity: 7AH / 12VDC (Up to 2 within enclosure) 40 AH / 65 AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
Input: 220VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
PDS8CB Dual Input Power Distribution Module
Input
Voltage: 12VDC from VR6 and 24VDC from eFlow4NBV.
Input PTC: 9A.
Outputs
Voltage 12VDC and/or 24VDC.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
PTCs 2.5A.
Indicators LED
DC Output: Eight (8) individual output LEDs.
Green: 12VDC
Red: 24VDC.
VR6 Voltage Regulator
Input
Voltage: 24VDC from eFlow4NBV.
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.
Output: Powered.
ACM4CB Access Power Controller
Input
Voltage: 24VDC from eFlow4NBV.
Input PTC: 9A.
Outputs
Voltage: 24VDC.
Four (4) independently controlled PTC outputs:
a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Outputs Ratings
PTCs: 2.5A.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
90 BTU/Hr.
