Description

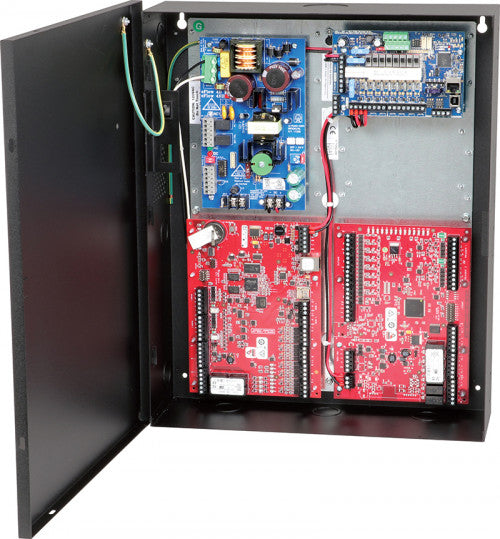

T1M1CK1DQ T1MK1F4QD/MAG/PTC/115VAC
Altronix T1M1CK1DQ is a 4-door access and power integration kit which includes Altronix
power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T1M1CK1DQ accommodates one (1) Intelligent Dual Reader Controller and one (1) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt
eFlow4NB Power Supply/Charger
Input
Voltage: 120VAC, 60Hz, 3.5A.
Fusing: 5A / 250V.
Output
Voltage: 24VDC.
Current: 4A continuous.
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Capacity: 7AH / 12VDC (Up to 2 within enclosure). 40 AH / 65 AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
Input: 120VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
VR6 Voltage Regulator
Input
Voltage: 24VDC from eFlow4NB.
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.
Output: Powered.
LINQ8PDCB Network Power Distribution Module
Input
Voltage: 24VDC from eFlow4NB and 12VDC from VR6
Input PTCs: 9A.
Outputs
Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2
Individual outputs may be set to OFF position for servicing
Output PTCs:
2.5A
Status Monitoring
Power Supply output voltage and load, Voltage and load of each output
FACP trigger and reset status, Unit temperature (Celsius)
Power Supply AC and Battery status, Battery health
Reporting:
Windows Dashboard Alert messages
E-mail notifications, Event Log tracks history
Indicators (LED)
Bat Local: Charging current status
FACP: Triggered / Released
Input: Input signal
Out1 - Out8: Output status
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
90 BTU/Hr.
