Description
T1DMK34 TROVE1DM1/12/24VDC@6A/ULX/FUSE

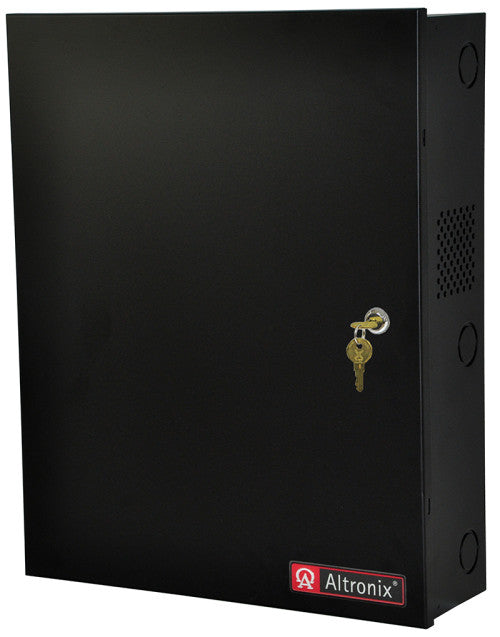

Altronix T1DMKF4 kit consists of Trove1 enclosure, TDM1 DMP/Altronix backplane with one (1) 12 or 24VDC @ 6A power supply/charger, one (1) voltage regulator and one (1) dual input fused power distribution module. This kit also accommodates up to four (4) DMP 734/734N Wiegand modules for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
AL600ULXB Power Supply/Charger
Input
Voltage: 115VAC, 60Hz, 3.5A max.
Fusing: 5A / 250V.
Outputs
Voltage: 12VDC or 24VDC selectable.
Current: 6A @ 12VDC or 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Capacity: 7AH/12VDC (Up to 2 within enclosure) 40AH/65AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Indicators LED
Input: 115VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
VR6 Voltage Regulator
Input
Voltage: 24VDC from AL600ULXB.
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.
Output: Powered.
PDS8 Dual Input Power Distribution Module
Input
Voltage: 12VDC from VR6 and 24VDC from AL600ULXB.
Input Fuse: 10A / 32V.
Outputs
Voltage: 12VDC and/or 24VDC.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
Fuses: 3A/32V.
Indicators (LED)
DC Output: Eight (8) individual output LEDs.
Green: 12VDC
Red: 24VDC.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 40 BTU/Hr.
24VDC: 77 BTU/Hr.
