Description

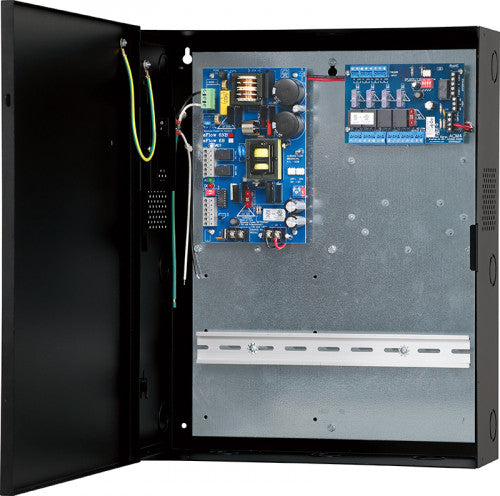

T1DK3FA4 ALTX/DIN/6A/4DR/FUSE/115
Altronix T1DK3FA4 kit consists of Trove1 enclosure, TDR1 DIN Rail/Altronix backplane with one (1) 12 or 24VDC @ 6A power supply/charger and one (1) fused access power controller. This kit also accommodates any DIN Rail mountable products for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation
time and labor costs.
eFlow6NTB Power Supply/Charger
Input
Voltage: 120VAC, 60Hz, 3.5A max.
Main Fuse: 5A / 250V.
Outputs
Voltage: 12VDC or 24VDC selectable
Current: 6A continuous max.
Auxiliary: Power-limited @ 1A (unswitched)
Other: Overvoltage protection. Filtered and regulated
Battery Charging
Capacity: 7AH/12VDC (2 within enclosure), 40AH/65AH (requires separate enclosure)
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Fire Alarm Disconnect
Supervised: Latching or non-latching
EOL: 10K Resistor
Supervision
AC Failure: Form “C” contacts
Battery: Form “C” contacts
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge
Indicators LED
Input: 120VAC is present
DC Output: Powered
ACM4 Access Power Controller
Input
Voltage: 12VDC or 24VDC from eFlow6NTB
Input Fuse: 10A /32V.
Outputs
Voltage: 24VDC
Four (4) independently controlled 2.5A outputs:
a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
b) Four (4) auxiliary power outputs (unswitched)
c) Any combination of the above.
Output Fuses: 3A / 32V.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized)
Green LED: FACP disconnect is triggered
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 40 BTU/Hr.
24VDC: 77 BTU/Hr.
