Description
T1AXK3F2SV ALT/AXIS 24V@6A/EFL/FUSED/220

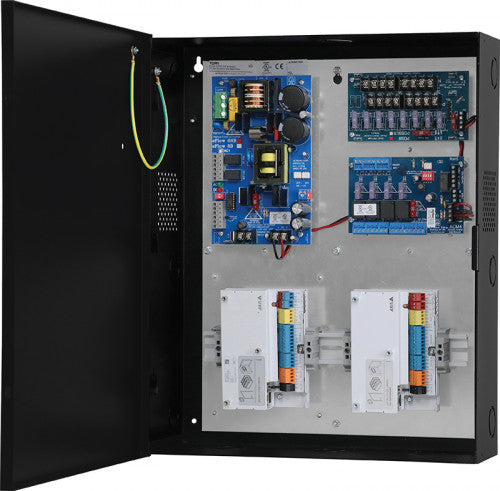

Altronix T1AXK3F2SV kit consists of Trove1 enclosure, TDR1 DIN Rail/Altronix backplane with
one (1) 12 or 24VDC @ 6A power supply/charger, one (1) fused access power controller, one (1) voltage regulator and one (1) dual input fused power distribution module. This kit also
accommodates one (1) A1610 or two (2) A1210 for up to two (2) doors in a single enclosure.
Trove simplifies board layout and wire management, reduces installation time and labor costs.
eFlow6NBV Power Supply/Charger
Input
Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.5A
Input Fuse: 5A / 250V.
Outputs
Voltage: 12VDC or 24VDC selectable.
Current: 6A continuous max.
Auxiliary: Power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Capacity: 7AH/12VDC (2 within enclosure); 40AH/65AH (requires separate enclosure)
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Fire Alarm Disconnect
Supervised: Latching or non latching.
EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
Input: 120VAC is present.
DC Output: Powered.
ACM4 Access Power Controller
Input
Voltage: 24VDC from eFlow6NBV
Input Fuse: 10A /32V
Outputs
Voltage: 24VDC
Four (4) independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs
Form “C” Relays rated 28VAC or VDC @ 2.5A
b) Auxiliary power outputs (unswitched)
c) Any combination of the above
Output Fuses: 3A / 32V
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
VR6 Voltage Regulator
Input
Voltage: 24VDC from eFlow6NBV
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.
Output: Powered.
PDS8 Dual Input Power Distribution Module
Input
Voltage: 12VDC from VR6 and 24VDC from eFlow6NBV
Input Fuse: 10A / 32V
Outputs
Voltage: 12VDC and/or 24VDC
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2
Individual outputs may be set to OFF position for servicing
Outputs Ratings
Fuses: 3A/32V
Indicators (LED)
DC Output: Eight (8) individual output LEDs
Green: 12VDC
Red: 24VDC.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
87 BTU/Hr.
