Altronix T1618300K 16/18VAC@300VA, 115V IN, TRANS

Altronix T1618300K 16/18VAC@300VA, 115V IN, TRANS

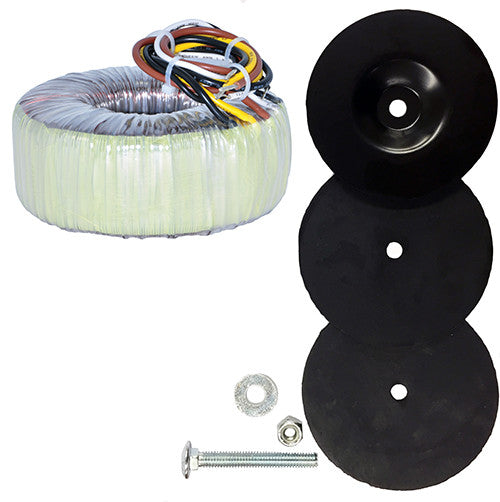

Altronix T1618300K open frame transformer kit provides power for electronic power supplies and equipment including security, access control, and surveillance devices. It includes T1618300 transformer and mounting hardware for TKH2 backplane.

Input
115VAC 50/60 Hz, 2.7A.

Output
16VAC/300VA (18.7A) or 18VAC/300VA (16.7A) supply current.

Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 154 BTU/Hr.
