Altronix T1618100 16/18VAC@100VA, 115V IN, TRANS

Altronix T1618100 16/18VAC@100VA, 115V IN, TRANS

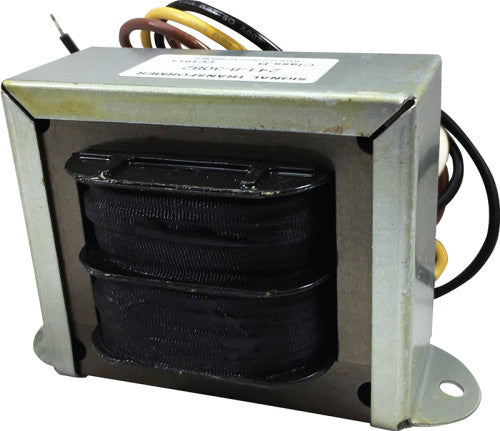

Altronix T1618100 open frame transformer provides power for electronic power supplies and equipment including security, access control, and surveillance devices.

Input
Voltage: 115VAC 50/60Hz, 1A.

Outputs
Voltage: 16VAC/100VA (6.25A) or 18VAC/100VA (5.5A).

Temperature
Operating: 0ºC to 49ºC (32ºF to 120ºF).
Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 51 BTU/Hr.
