Description
SMP7PMP16220 12/24VDC,6A 16 Fuse Out 220 PS

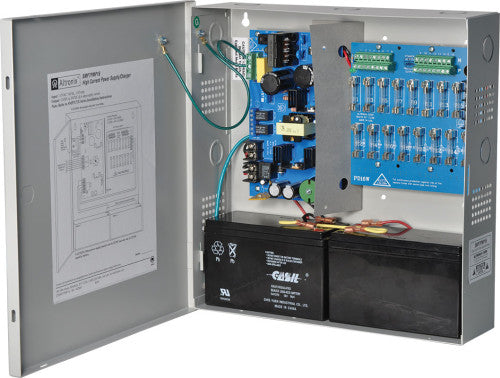

SMP7PMP16220 is a multi-output power supply/charger that converts a 220VAC/60Hz input into sixteen (16) 12VDC or 24VDC outputs.
Input
Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 1.5A.
Output
12VDC or 24VDC selectable output.
6A supply current.
Sixteen (16) fuse protected outputs.
Outputs are rated @ 3.5A.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Zero voltage drop when switching over to battery backup.
Supervision
AC fail supervision (form "C" contacts).
Battery presence and low battery supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 37 BTU/Hr.
24VDC: 74 BTU/Hr.
System AC input VA requirement: 330VA.
