Description

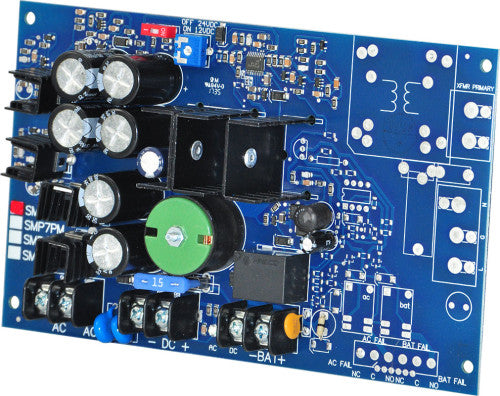

Altronix SMP7 12/24V, 6 AMP PS/CHGR
SMP7 power supply/charger converts a low voltage AC input into a 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.
Input
Input 28VAC.
Output
12VDC or 24VDC selectable output.
6A supply current.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current 0.7A.
Zero voltage drop when switching over to battery backup.
(Batteries are sold separately).
Visual Indicators
AC input and DC output LED indicators.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr (approx.):
12VDC: 37 BTU/Hr.
24VDC: 75 BTU/Hr.
System AC input VA requirement: 184VA.
