Description

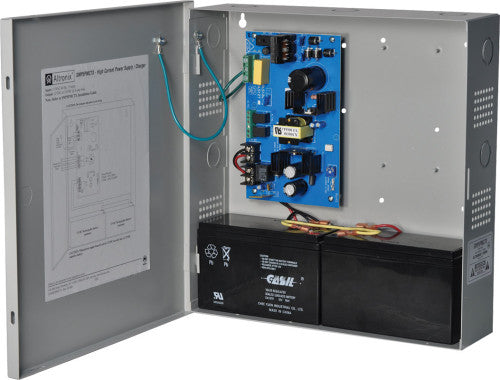

Altronix SMP5PMCTX 12/24V,4.0A SUPVS PS LG CAB
SMP5PMCTX supervised power supply/charger converts a 115VAC/230VAC, 50/60Hz input into a regulated 12VDC or 24VDC output @ 4A continuous supply current.
Input
Input 115VAC, 50/60Hz, 0.95A or 230VAC, 50/60Hz, 0.5A.
Output
12VDC or 24VDC selectable output.
4A supply current.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current 0.5A.
Zero voltage drop when switching over to battery backup.
(Batteries are sold separately).
Supervision
AC fail supervision (form "C" contacts).
Low battery supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Features
Power ON/OFF switch.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 25 BTU/Hr.
24VDC: 49 BTU/Hr.
System AC input VA requirement:
115VAC: 109.25VA.
230VAC: 115VA.
