Description

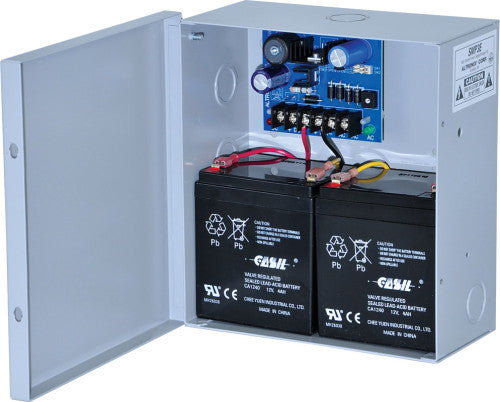

Altronix SMP3E SMP3 W/ BC 100 CABINET
SMP3E power supply/charger converts a low voltage AC input into 6VDC, 12VDC or 24VDC @ 2.5A continuous supply current. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.
Input
16VAC to 28VAC.
Output
6VDC, 12VDC or 24VDC selectable output.
2.5A continuous supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Maximum charge current 0.3A.
Battery short circuit protection (circuit breaker).
(Batteries are sold separately).
Visual Indicators
AC input and DC output LED indicators.
Features
Includes battery leads.
Power supply/charger with enclosure.
Fits one (1) 12VDC/7AH or two (2) 12VDC/4AH batteries.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
6VDC: 8 BTU/Hr.
12VDC: 15 BTU/Hr.
24VDC: 31 BTU/Hr.
System AC input VA requirement:
6VDC/12VDC: 55.2VA.
24VDC: 115VA.
