Description

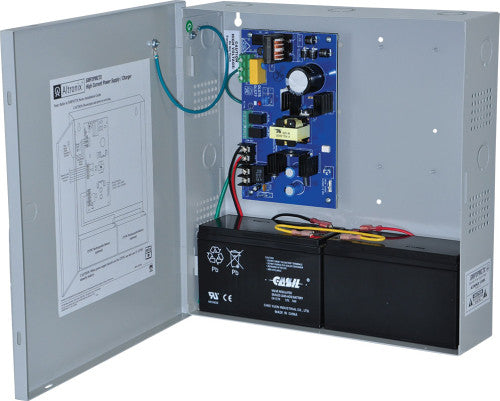

Altronix SMP3CTX 12/24VDC 2.5A P/S IN BC300 CAB
SMP3CTX power supply/charger converts a 115VAC/230VAC, 50/60Hz input into a regulated 12VDC or 24VDC output @ 2.5A continuous supply current.
Input
Input 115VAC, 50/60Hz, 0.65A or 230VAC, 50/60Hz, 0.35A.
Output
12VDC or 24VDC selectable output.
2.5A supply current.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Zero voltage drop when switching over to battery backup.
(Batteries are sold separately).
Features
Power ON/OFF switch.
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70°C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 15 BTU/Hr.
24VDC: 31 BTU/Hr.
