Description

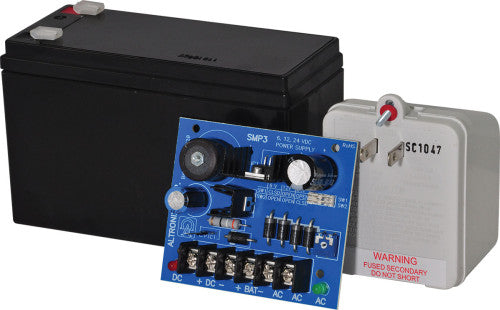

Altronix SMP312CX SMP3 /TP1640/ 7 AH BATT
These switching power supply/charger kits have a wide range of applications including: access control, security and CCTV system accessories that require additional power.
Output
12VDC output.
2.5A continuous supply current.
Kit includes: power supply, 12VDC 7AH rechargeable battery and 16.5VAC 40VA Class 2 Rated plug-in transformer.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Battery short circuit protection (circuit breaker).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating temperature: -20° C to 49° C ( -4° F to 120.2° F).
Storage temperature: -20° to 70° C ( -4° to 158° F).
BTU/Hr. (approx.)
6VDC: 8 BTU/Hr.
12VDC: 15 BTU/Hr.
24VDC: 31 BTU/Hr.
System AC input VA requirement:
6VDC/12VDC: 55.2VA.
24VDC: 115VA.
Features
Extremely compact design.
Includes battery leads.
Snap Track compatible (order Altronix model number ST3).
