Description

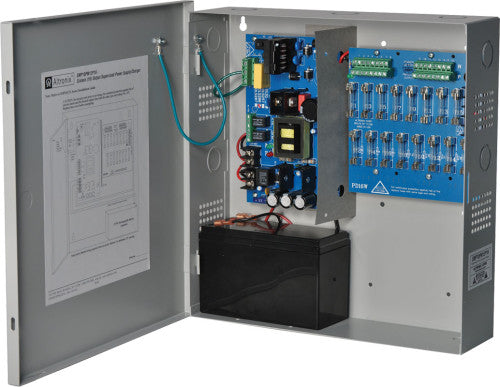

Altronix SMP10PM12P16 12VDC,10A 16 Fuse Out Cab PS
SMP10PM12P16 is a multi-output power supply/charger that converts a 115VAC/60Hz input into sixteen (16) 12VDC outputs.
Input
Input 115VAC, 60Hz, 1.45A.
Output
12VDC output.
10A supply current.
Sixteen (16) fuse protected outputs.
Outputs are rated @ 3.5A.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current 0.7A.
Zero voltage drop when switching over to battery backup.
(Batteries are sold separately).
Features
Power ON/OFF switch.
Supervision
AC fail supervision (form "C" contacts).
Battery presence and low battery supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 61 BTU/Hr.
System AC input VA requirement: 166.75VA.
