Description

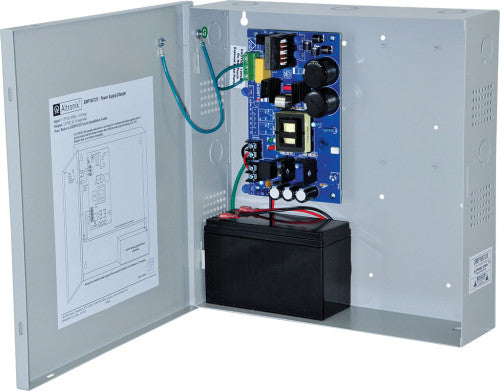

Altronix SMP10C12X 12VDC,10A Cab PS
SMP10C12X power supply/charger converts a 115VAC / 60Hz input into a regulated 12VDC output @ 10A continuous supply current.
Input
Input 115VAC, 60Hz, 1.45A.
Output
12VDC output.
10A supply current.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current 0.7A.
Zero voltage drop when switching over to battery backup.
(Batteries are sold separately).
Features
Power ON/OFF switch.
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 61 BTU/Hr.
System AC input VA requirement: 166.75VA.
