Description

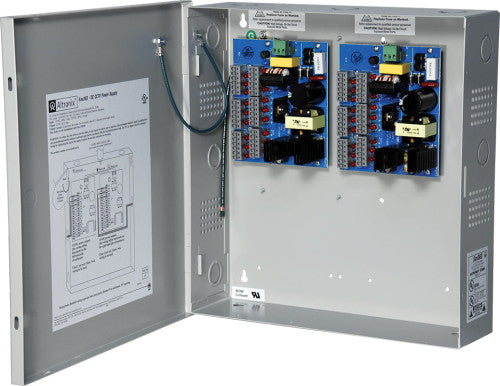

Altronix SAV36D 36OUT 12VDC @ 11A PTC CCTV P/S
Sav36D provides 12VDC distributed via thirty-six (36) Class 2 Rated PTC protected power limited outputs for powering surveillance cameras.
Input
115VAC 60Hz, 3A / 230VAC 50Hz, 1.5A.
Output
12VDC @ 11A total output current (0.30A per device, 2.5A max.).
Thirty-six (36) Class 2 Rated PTC protected power limited auto-resettable outputs.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Features
Power LEDs.
Field installable 3-wire line cord with integral strain relief.
Unit maintains camera synchronization.
Ease of installation saves time & eliminates costly labor.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70°C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 68 BTU/Hr.
System AC input VA requirement:
115VAC: 345VA.
230VAC: 330VA.
