Description

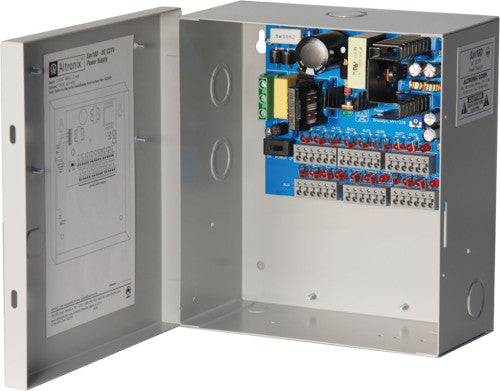

Altronix SAV18D 18OUT 12VDC @ 5A PTC CCTV P/S
Sav18D Power Supply provides 12VDC distributed via eighteen (18) Class 2 Rated PTC protected power limited outputs for powering surveillance cameras.
Input
115VAC60Hz, 1.5A or 230VAC 50Hz, 0.75A.
Output
12VDC @ 5A total output current (0.27A per device, 2.5A max.).
Eighteen (18) Class 2 Rated PTC protected power limited auto-resettable outputs.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Features
Power LEDs.
Field installable 3-wire line cord with integral strain relief.
Unit maintains camera synchronization.
Ease of installation saves time & eliminates costly labor.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70°C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 31 BTU/Hr.
System AC input VA requirement: 172.5VA.
