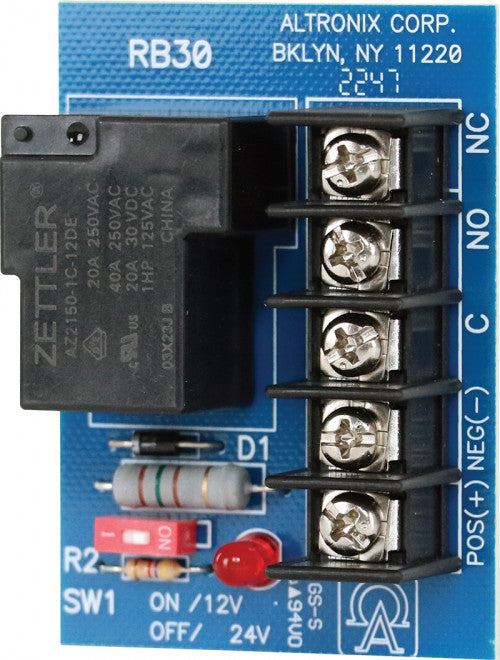

Altronix RB30 RELAY MODULE 12/24V SPDT 30AMP
RB30 relay module is designed for continuous duty. This rugged, reliable and dependable relay will handle many switching application.
Input Voltage
12VDC or 24VDC operation.
Current draw: 95mA.
Contact Rating
30A/28VDC, 120VAC or 277VAC SPDT contacts.
Indicators (LED)
Trigger: Relay is triggered.
Temperature
Operating - 25ºC to 55ºC ( -13ºF to 131ºF).
Storage - 25ºC to 70ºC ( -13ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
