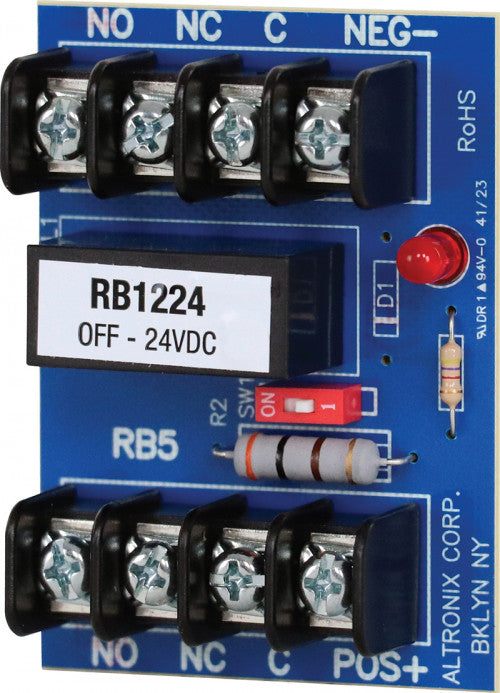

Altronix RB1224 RELAY MODULE 12V/24 DPDT 5 AMP

Altronix RB1224 RELAY MODULE 12V/24 DPDT 5 AMP Altronix RB1224 Relay Module can be utilized in many different applications such as: Dry Contact, Line Seizure, Polarity Reversal, Latching Dry Contact, and much more. Input Voltage: 12VDC or 24VDC operation. Current draw: 75mA. Contact Rating 5A/220VAC or 28VDC DPDT contacts. Indicators (LED) Trigger: Relay is triggered Remote LED status output Temperature Operating temperature: -25ºC to 55ºC (-13ºF to 131ºF). Storage temperature: -25ºC to 70ºC (-13ºF to 158ºF). Relative Humidity: 85% +/-5%.
