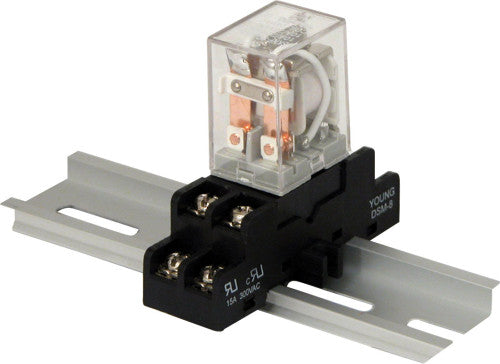

Altronix RAC24 24VAC DPDT RELAY AND BASE

Altronix RAC24 24VAC DPDT RELAY AND BASE

Altronix RAC24 DIN rail mountable relay is designed for continuous duty. This rugged and dependable relay will handle any switching application.

Input Voltage
24VAC operation.
Current draw: 45mA.

Contact Rating
10A/220VAC or 28VDC DPDT contacts.

Temperature
Operating - 25° C to 55° C ( - 13° F to 131° F).
Storage - 25° C to 70° C ( - 13° F to 158° F).
Relative Humidity 85% +/- 5%.
