Description

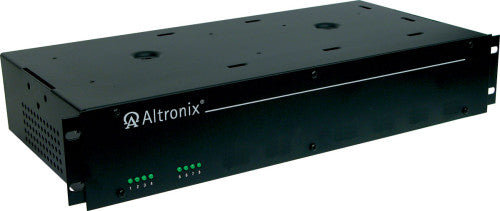

R615DC8CB220 6-15VDC @ 4 A, 8 PTC Rack 220V
R615DC8CB220 provides 6-15VDC distributed via eight (8) PTC protected outputs for powering CCTV cameras, heaters and other video accessories.
Input
220VAC, 50/60Hz, 0.5A.
Output
Eight (8) PTC protected auto-resettable outputs.
6-15VDC @ 4A total output current. (0.5A per device, 2.5A max.)
Outputs are rated @ 2.5A.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Temperature
Operating temperature: 0° C to 49° C ( 32° F to 120° F).
Storage temperature: -20° C to 70° C ( -4°F to 158° F).
BTU/Hr. (approx., depending on output): 14-36 BTU/Hr.
Relative Humidity 85% +/-5%
System AC input VA requirement: 110VA.
Features
Eight (8) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
3-wire grounded line cord.
Removable terminal blocks with locking screw flange.
