Description

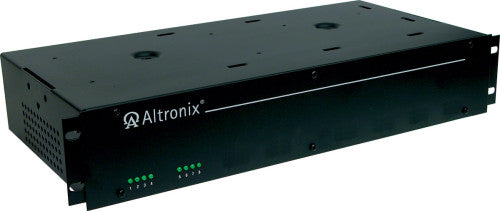

Altronix R248UL 24 VAC @ 3.5 Amp, 8 Out, UL
R248UL provides 24VAC or 28VAC distributed via eight (8) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 0.85A.
Output
Eight (8) fuse protected outputs.
24VAC @ 3.5A (85VA) supply current (0.4375A per device, 3.5A max.) or 28VAC @ 3A (85VA) supply current (0.375A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 43 BTU/Hr.
System AC input VA requirement: 97.75VA.
Features
Eight (8) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
3-wire grounded line cord.
Removable terminal blocks with locking screw flange.
Spare fuses provided.
