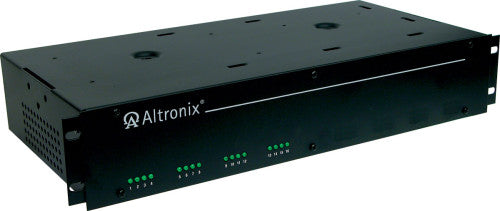

Altronix R2416UL 24VAC @ 7A, 16 Outputs, UL
R2416UL provides 24VAC or 28VAC distributed via sixteen (16) fuse protected outputs for powering CCTV cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 3A.
Output
Sixteen (16) fuse protected outputs.
24VAC @ 7A (175VA) supply current (0.4375A per device, 3.5A max.) or 28VAC @ 6A (175VA) supply current (0.375A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 90 BTU/Hr.
System AC input VA requirement: 345VA.
Features
Sixteen (16) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
3-wire grounded line cord.
Removable terminal blocks with locking screw flange.
Spare fuses provided.
