Description

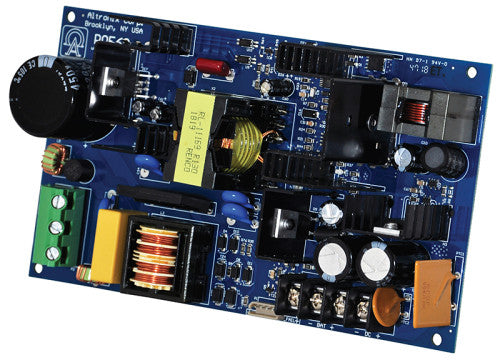

Altronix POE60 56VDC 75W P/S BD LITHIUM CHRGR
Altronix POE60 provides 75W for NetWay Spectrum switches with 1Gb SFP ports. It converts 115VAC, 60Hz or 230VAC, 50Hz input into a 56VDC at 1.3A of continuous supply current (see specifications). It also features a optimized built-in charger for Lithium Iron Phosphate type battery.
Input
Voltage: 115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A.
Output
Voltage: 56VDC/75W.
Current: 1.3A continuous supply current.
Maximum Power: 75W total power.
Integral surge protection.
Battery Charging
Type: 12V LiFePO4 (Lithium Iron Phosphate)
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Features
Input voltage selection switch.
Includes battery leads.
Temperature
Operating (75W): - 40° C to 70° C ( - 40° F to 158° F).
Storage: - 40° C to 85° C ( - 40° F to 185° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 38 BTU/Hr.
