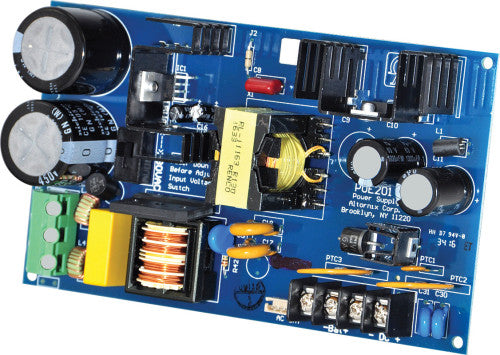

Altronix POE201 P/S FOR NETWAY4E SERIES

Altronix POE201 P/S FOR NETWAY4E SERIES Altronix POE201 provides 120W for NetWay Spectrum switches with 1Gb SFP ports. It converts 115VAC, 60Hz or 230VAC, 50Hz input into a 56VDC at 2.2A of continuous supply current (see specifications). It also features a built-in charger for sealed lead acid or gel type batteries. Input 115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A. Output 56VDC/120W output. 2.2A continuous supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Battery charging circuit: 48VDC, 300mA. Automatic switch over to stand-by battery when AC fails. (Batteries are sold separately). Features Input voltage selection switch. Includes battery leads. Temperature Operating (120W): - 30° C to 75° C ( - 22° F to 167° F). Storage: - 30° C to 85° C ( - 22° F to 185° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 61 BTU/Hr.
